SPARK EM ESWL
ELECTROMAGNETIC / ELECTROHYDRAULIC LITHOTRIPSY SYSTEM

SPARK EM ESWL
ELECTROMAGNETIC LITHOTRIPSY SYSTEM

SPARK EM ESWL, works with its electromagnetic working principle supported by an optical lens, provides high accuracy and low precision values, with minimum pain and other complications.

The shock therapy head of SPARK EM has a design that is completely compatible with the patient’s body. Thanks to the improved water cushion design, maximum coupling with the patient’s body and treatment efficiency are provided.

With its special degassing feature, Spark EM ESWL decomposes the gas inside the liquid of generator to the minimum level ( 1-1,5 mgr/Lt) and provide best shock wave transmission with least pain on patient.

C-ARM FLUOROSCOPY

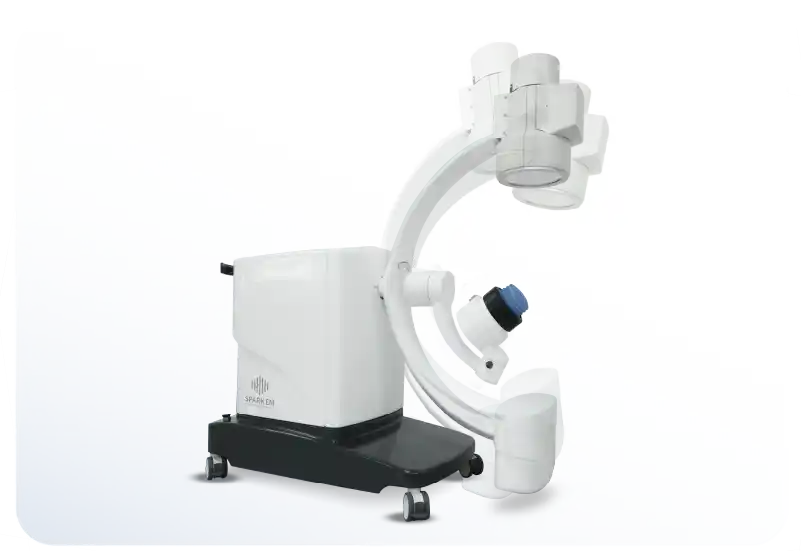

Motions of C-Arm with X-Ray tube and Image Intensifier can be controlled remotely with Remote Hand Control Unit.

Crano-caudal Rotation angle of C-Arm is total 60 degrees. This angle and motorized motions of the C-Arm can be arranged by Remote Hand Control Unit.

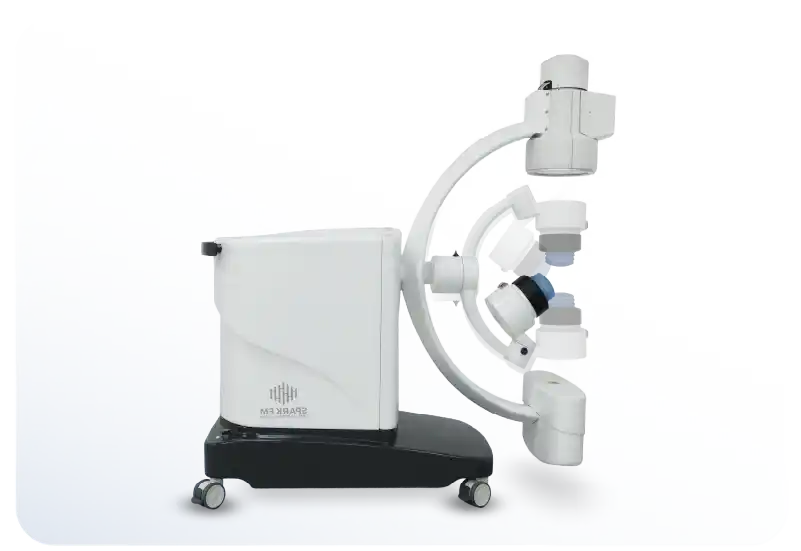

C-Arm has the ability to move 30 degrees to the right - 30 degrees to the left. The C-Arm of the device provides an advantage in focusing and imaging with its bidirectional movement capability.

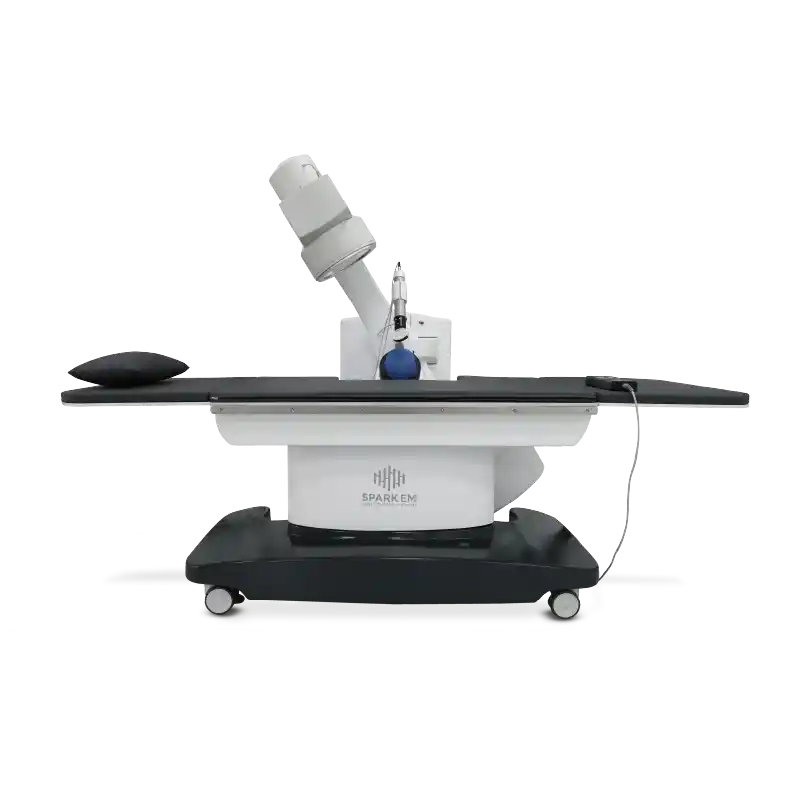

Spark EM ESWL Systems are compact and detachable when desired,
with Stone Crushing Unit, Patient Treatment Table and C-arm Scopy System.
A sleeveless model is produced for those who want to use it with an independent C-arm Scopy.

PERFECT STONE CRUSHING

The SPARK EM ESWL electromagnetic shock wave system transmits the high maximum energy that enables perfect stone fragmentation through a deep focus with the best hit rate. This is how it provides low energy density for non-invasive treatment.

One of the most important features of the Spark EM ESWL System; It has a high penetration depth.
It makes a great contribution in the treatment of overweight patients.

ULTRASOUND IMAGING AND LOCALIZATION TECHNOLOGY

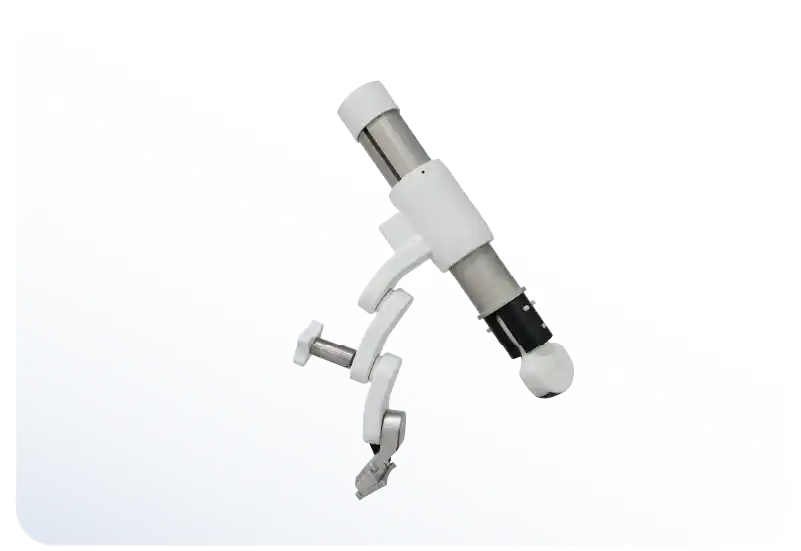

The external ultrasound localization system allows the ultrasound probe to have a longer life comparatively to linear localization systems.

An optional ultrasound focusing system detects all types of stones and transmits the image in high resolution format instantenously.

With X-ray and Ultrasound combined and separate imaging options, Spark ESWL systems offer the user the most comprehensive stone imaging opportunity.

While the X-Ray Fluoroscope feature enables the patient to be positioned quickly at the initial of the operation, the Ultrasound imaging system allows the tracking of the instantaneous movements and fragmentation of the stone. In addition, in pediatric patients and in the treatment of non-opaque stones, it is possible to detect and break stones only by ultrasonography, without using X-Ray, with Spark ESWL systems.

DATABASE SYSTEM SUPERIOR IMAGE PROCESSING SOLUTION!

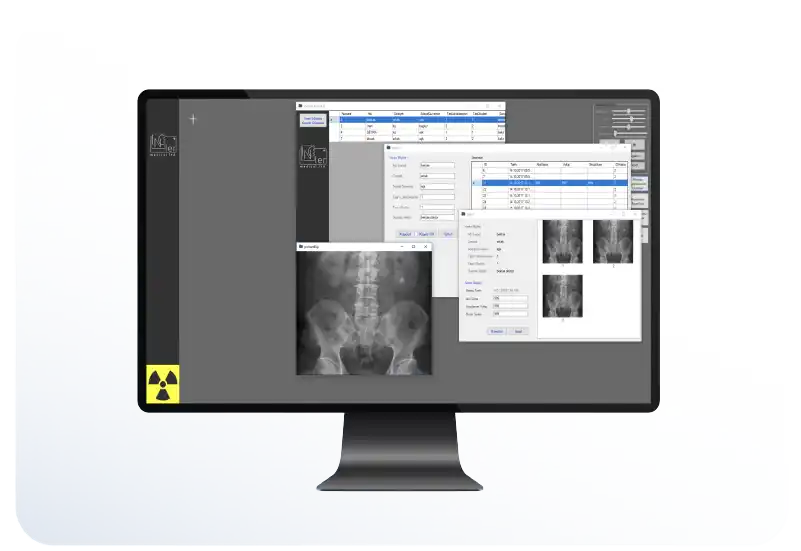

Patient information, medical history, stone details, disintegration parameters, laboratory results, X-ray dosage and statistical data can be exported by software. The software not only archives the data, but also stores the patient’s images in DICOM format. These recordings can be written to CD/DVD.

REMOTE CONTROL UNIT TO CONTROL LITHOTRIPSY

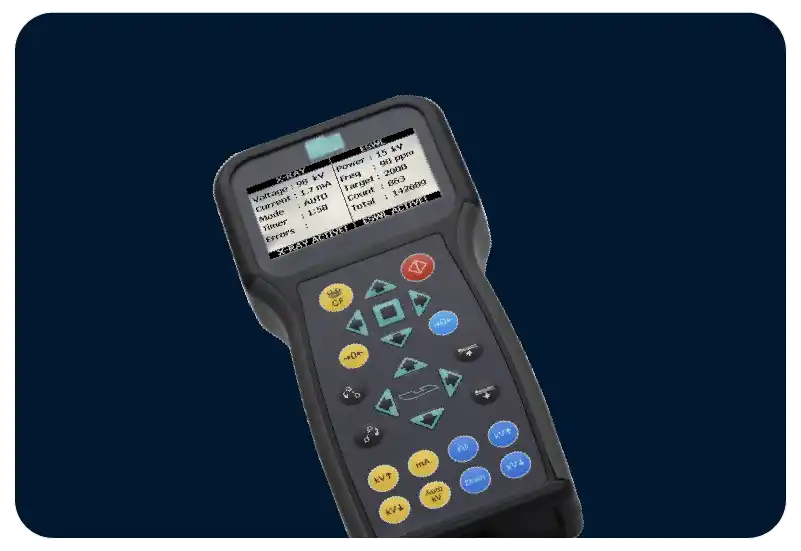

In the Spark EM ESWL System, all operations can be performed with a remote control unit during, before and after operations.

The Spark system is designed to reduce the focal point deviation to zero. The Fluoroscopy System can be used in combination with the ESWL unit and is produced in high resolution imaging standards.

  • Ergonomic, lightweight and exclusive design
  • Availability of ease of use remotely

PATIENT TABLE – PROVIDES COMFORTABLE TREATMENT

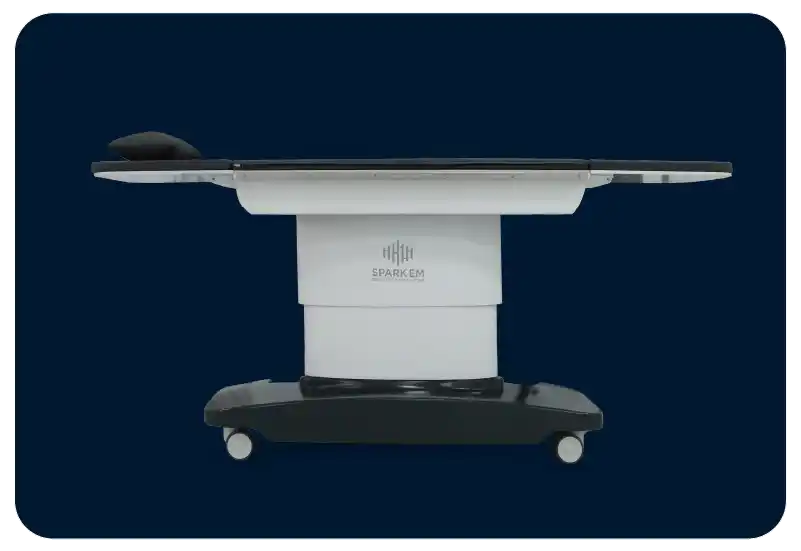

Spark EM multifunctional patient treatment table is suitable for use in all urological procedures with its ability to move in 6 axes.

EASY TO CARRY FEATURE

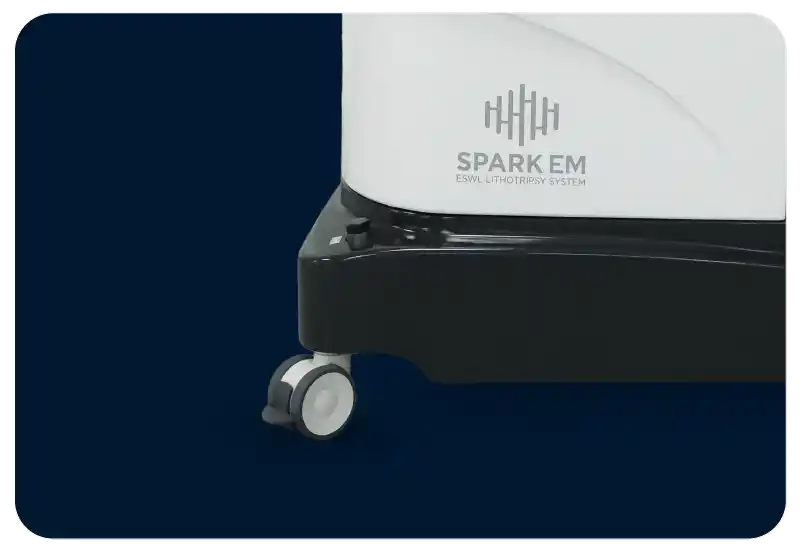

Spark EM can be easily moved with its large wheels and thus can be transported easily. It can be moved from room to room without the need for a lift or similar carrier vehicles.

“Spark EM ESWL Electromagnetic Lithotripsy System
makes a difference with its ergonomic and aesthetic structure.”

PENETRATION DEPTH FEATURES

The Spark EM ESWL System stands out with its high penetration depth. This feature helps overweight patients achieve more effective results while responding to their treatment needs.

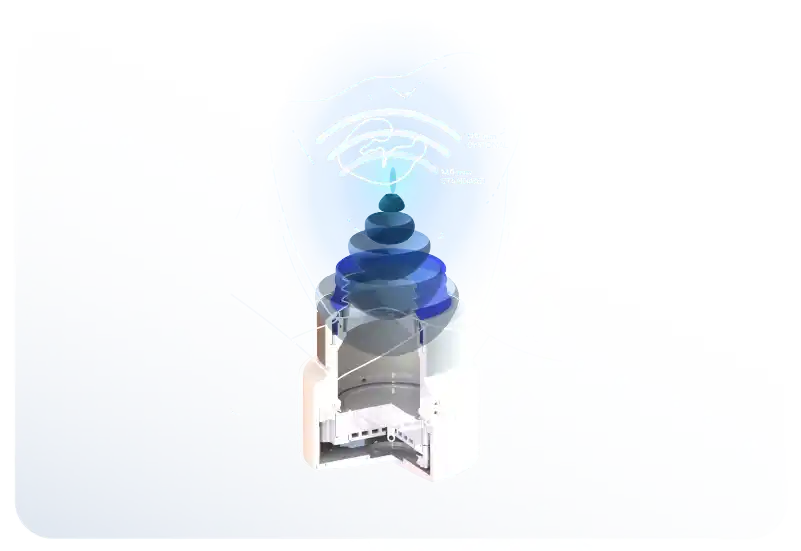

The standard focusing option offers a depth of penetration of 140mm, targeting typical stone formations, while the optional focusing option provides a deeper focus of 170mm, allowing more complex or deep stones to be effectively broken.

C ARMLESS SYSTEM

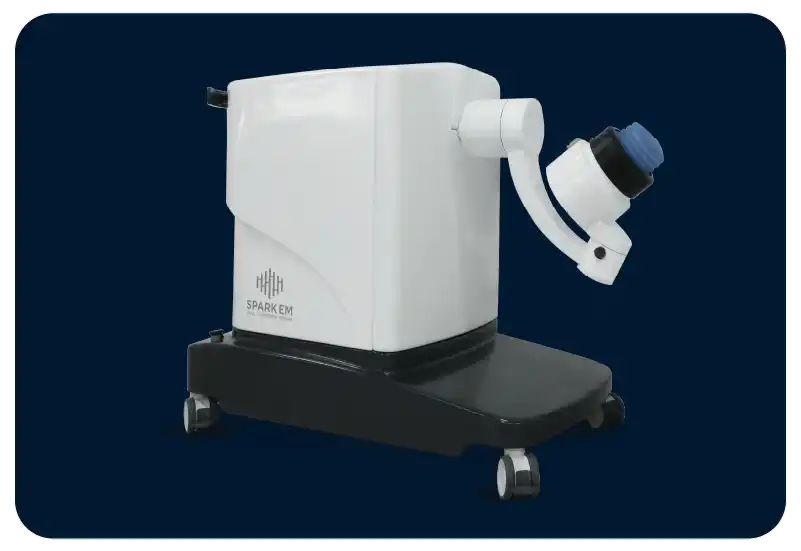

C-Armless versions of the Spark EM ESWL and Spark ESWL Systems are also available for use in combination with external C-Arm Fluoroscopy Units and/or Ultrasonography.

SPARK ESWL
ELECTROHYDRAULIC LITHOTRIPSY SYSTEM

In the SPARK ESWL system, all operations can be done with a remote control. During lithotripsy, the focus of the device can be controlled from any desired location. Any brand of ultrasonography device can be added to our system through the uniquely designed ultrasound localization arm.

C-ARM FLUOROSCOPY

Motions of C-Arm with X-Ray tube and Image Intensifier can be controlled remotely with Remote Hand Control Unit.

Crano-caudal Rotation angle of C-Arm is total 60 degrees. This angle and motorized motions of the C-Arm can be arranged by Remote Hand Control Unit.

C-Arm of the Spark ESWL has 30 degrees capability of oblique imaging on both right and left sides.

The most important factor in the success of ESWL Treatment is the correct focusing process. It is important for the focusing process that the system is compact and easily controllable.

PERFECT STONE CRUSHING

The SPARK EM ESWL electromagnetic shock wave system transmits the high maximum energy that enables perfect stone fragmentation through a deep focus with the best hit rate. This is how it provides low energy density for non-invasive treatment.

One of the most important features of the Spark ESWL System is high penetration depth.
It makes a great contribution in the treatment of overweight patients.

ULTRASOUND IMAGING AND LOCALIZATION TECHNOLOGY

The external ultrasound localization system allows the ultrasound probe to have a longer life comparatively to linear localization systems.

An optional ultrasound focusing system detects all types of stones and transmits the image in high resolution format instantenously.

With X-ray and Ultrasound combined and separate imaging options, Spark ESWL systems offer the user the most comprehensive stone imaging opportunity.

While the X-Ray Fluoroscope feature enables the patient to be positioned quickly at the initial of the operation, the Ultrasound imaging system allows the tracking of the instantaneous movements and fragmentation of the stone. In addition, in pediatric patients and in the treatment of non-opaque stones, it is possible to detect and break stones only by ultrasonography, without using X-Ray, with Spark ESWL systems.

DATABASE SYSTEM SUPERIOR IMAGE PROCESSING SOLUTION!

Patient information, medical history, stone details, disintegration parameters, laboratory results, X-ray dosage and statistical data can be exported by software. The software not only archives the data, but also stores the patient’s images in DICOM format. These recordings can be written to CD/DVD.

REMOTE CONTROL UNIT TO CONTROL LITHOTRIPSY

In the Spark EM ESWL System, all operations can be performed with a remote control unit during, before and after operations.

The Spark system is designed to reduce the focal point deviation to zero. The Fluoroscopy System can be used in combination with the ESWL unit and is produced in high resolution imaging standards.

  • Ergonomic, lightweight and exclusive design
  • Availability of ease of use remotely

PATIENT TABLE – PROVIDES COMFORTABLE TREATMENT

Spark EM multifunctional patient treatment table is suitable for use in all urological procedures with its ability to move in 6 axes.

EASY TO CARRY FEATURE

Spark EM can be easily moved with its large wheels and thus can be transported easily. It can be moved from room to room without the need for a lift or similar carrier vehicles.

“Spark ESWL Electrohydraulic Lithotripsy System
makes a difference with its ergonomic and aesthetic structure.”

C ARMLESS SYSTEM

C-Armless versions of the Spark EM ESWL and Spark ESWL Systems are also available for use in combination with external C-Arm Fluoroscopy Units and/or Ultrasonography.

TECHNICAL SPECIFICATION

Technical Data/ Main Unit

Energy Source(Working Principle) Electrohydraulics
Patient Touch Membrane (Dry Touch)
Localization Fluoroscopy and/or Ultrasound
Focal Penetration 130 mm
Unit control Hand Control Unit
Focusing Method Ellipsoid reflector
Electrode Type Long Life ( a couple 40 sessions = 80.000 shocks)
Operating Voltage Variable 0 – 21 KV
Device Sturcture Compact
Main Unit Dimensions 90 cm x 190 cm X 191 cm
Water System Closed loop circuit with water cushion
Pressure regulation and 12 lt. Water capacity
Main Body Weight 285 kg



Patient Table

Movement Height/Horizantal/Vertical 300mm/150mm/150mm
Table Type Motorized
Lifting Capacity 200 kg.
Table Adjustment Limiting Electronic adjustment in 3 dimensions

Lithoscope

Fluoroscopy Voltage 40 –110 KV (Automatic Brightness Control)
Fluoroscopy Current 0.2 – 3.5 mA (ABC) two main selection
Image Intensifier 6” (7” –9” – 12” optional)
X-Ray Tube 0.6 – 1.5 mm (1.8 mm optional) focal spot Stationary anode, 40.000 HU
TV Camera High resolution CCD camera
Monitor (17” 19” –21” optional)

General

Main Power Supply 230 or 115 VAC ± 10%50-60 Hz Single Phase
The System Complies With According to EN 60601-1 Class I, Type B According to 93/42/MDD, Class II
Warranty 24 Months
